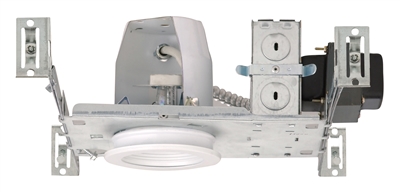

NICOR 13000 3 Inch New Construction Housing
Alternative Views:
Our Price:
$
49.00
Product Code:
13000
Qty:
Description
Technical Specs
Videos & Manuals
NICOR 3 Inch Universal Low-Voltage Housing for New Construction Applications
For a Formal Estimate Call: 888-560-0759 or E-Mail:
[email protected]
This three-inch Non-IC rated housing is suitable for new construction in residential and commercial applications and requires 3 Inch spacing from insulation. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim selection. The 4 1/2 Inch housing height allows it to be used in 2 in. x 6 in. joist construction.
Our Housings Come with a 1 Year Warranty!
Housing
Transformer includes integral thermal protector, guards against improper lamping and misuse of insulation materials.
Use low voltage 20W - 50W MR-16 or JC type lamps (12V) (not included).
Class H 50W transformer, step down 120V to 12V.
Use dimmers specifically designed for low voltage magnetic transformers.
4 1/2” height allows use in 2” x 6” joist construction.
Plaster Frame
Housing is secured to plaster frame with screws and can be removed for access to junction box.
Housing adjusts from 1/2” to 1 1/2” to accommodate ceiling thickness.
Junction Box
Listed for through branch circuit wiring and includes several 3/4” knockouts. Four pryouts with integral strain relief simplify Romex installation.
Supplied with three IDEAL® push-in wire connectors.
Hanger Bars
Heavy-gauge NICOR captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24” joist span, then locked in place with set screws.
Unique hanger bar lip design helps align can to joist. Four double-headed captive nails provide for ease of installation
Bars can be re-positioned 90° on plaster frame without tools.
Bars fit onto T-bar spine for quick alignment and can be permanently secured.
Score lines allow bars to be shortened without tools to accommodate a 12” joist span. Listings UL damp location UL feed-through CUL
Downloads:
Spec Sheet
Warranty Information
Features
3 in. Low Volt Housing Non-IC
Suitable for use in residential or commercial applications
Use low voltage 20W - 50W MR 16 or JC Type lamps (12V)
Non-IC rated. Insulation must be kept a minimum of 3” from housing
