DLR4(v6) 4-inch Oil-Rubbed Bronze Selectable Recessed LED Downlight
Alternative Views:
Our Price:
$
24.99
Product Code:
DLR4607120SOB
Qty:
Description
Technical Specs

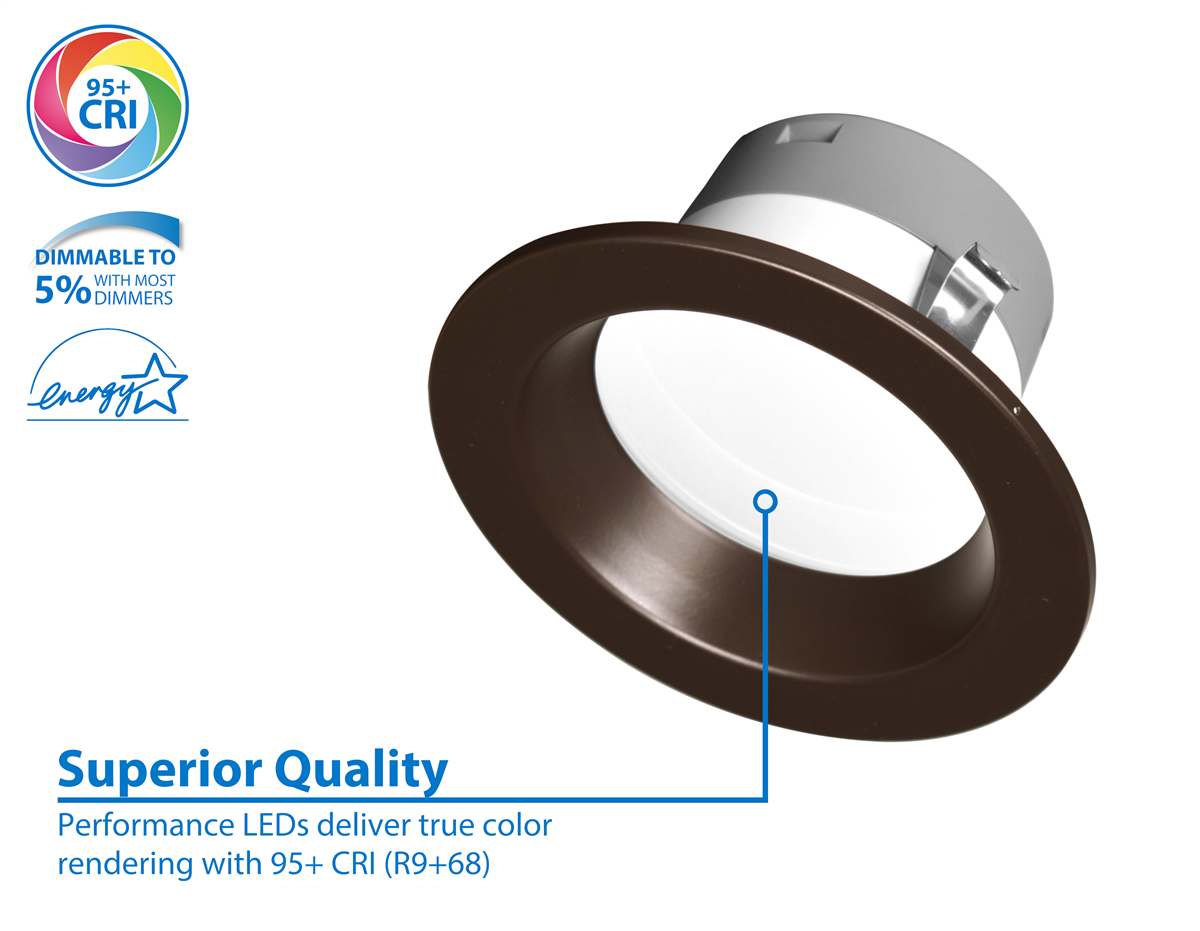

NICOR DLR4(v6) 4-inch Oil-Rubbed Bronze Selectable Recessed LED Downlight
This is a 4-inch Selectable Recessed LED Downlight in Oil-Rubbed Bronze for commercial and residential applications. With easy installation right out of the box, it's never been easier to replace old recessed fixtures with high-efficiency LED lighting. The DLR4 is fully dimmable and selectable. Switch between five built-in color temperature settings ranging from warm white to daylight (2700K – 5000K). With a lifespan exceeding 54,000 hours and an industry leading 5-year warranty, the DLR4 is built to last.
For a Formal Estimate Call: 888-560-0759 or E-Mail:
[email protected]
Our LED Products Come with an Outstanding 5-Year Warranty!
Construction
Powder coated steel trim routes heat away from electrical components
Polymer driver cover for durability
Fully captured V-springs on 6”
Friction fit arms on 4”Included EVA gasket to conform to AirTight rating when used with AT housing or DLR- 5-FRAME.
Ultra low profile, integrated driver designed for DLR4 frame use
Airtight when used with DLR4 frame
Also allows for use in shallow housings Die cast aluminum housing
Optical System
Single CCT LED used for 3000K standard model.Selectable models use a dual emitter array that enables CCT selection of 2700, 3000, 3500, 4000, or 5000K
Utilizes high performing LEDs with 90+ CRI and an R9 > 50
Polystyrene diffuser creates uniform distribution without sacrificing lumen output
Electrical
Input voltage of 120VACDimmable to 5% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
Finish
Exterior white powder coat finish

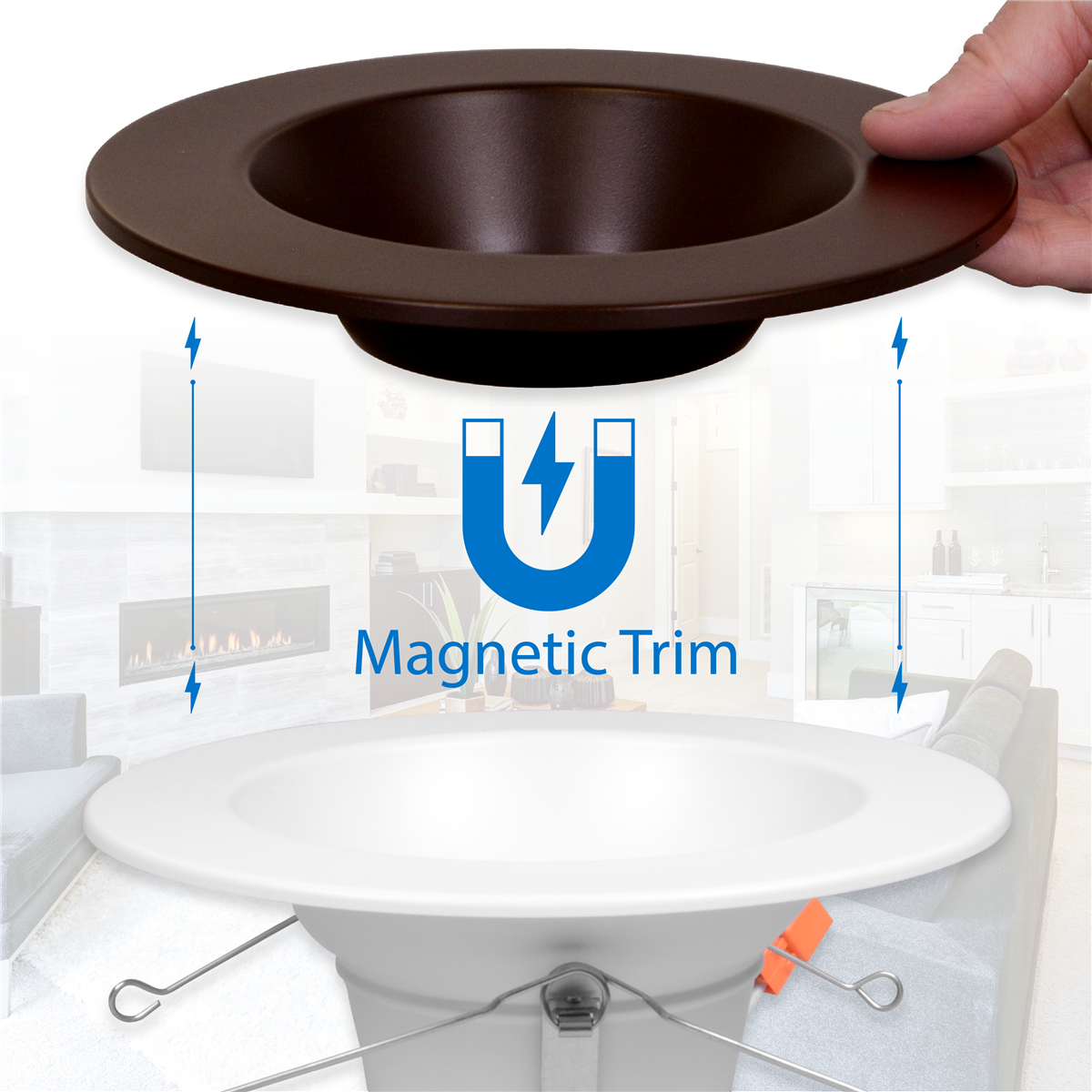

Available accessory trim covers in Black, Oil-Rubbed Bronze and Nickel
Mounting and Installation
Compatible with patented DLRv5 frame
Compatible with most 4” or 5” & 6” recessed housings
Quick and easy installation with an IDEAL luminaire connector and torsion spring or friction fit mounting system
Ships with Edison base socket string (GU24 socket string available)
Listings
LM-79, LM-80 testing performed in accordance with IESNA standards
cETLus 1598 Classified for wet locations
ENERGYSTAR listed
CA Title 20 Compliant
CA Title 24 Compliant
Airtight when used with DLRv5 frame
Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
RoHS Compliant
Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
ICES-005 Compliant
LED lumen maintenance: L70(9k)>54,000 hrs for DLR4607 and DLR56609
LED lumen maintenance: L70(12k)>72,000 hrs for DLR5612
Warranty
5-year limited system warranty
Warranty does not cover product failure due to an overvoltage event (power surge)
For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Features
Luminaire:
2700K
3000K
3500K
4000K
5000K
LED Lifetime (Hrs):
54,000
54,000
54,000
54,000
54,000
Input Voltage (V):
120V
120V
120V
120V
120V
Input Watts:
7.88W
7.90W
7.70W
7.64W
7.83W
Lumens (Lm):
721
735
742
758
752
System Efficacy (Lm/W):
91.53
93.04
96.36
99.16
96.07
Color Rendering Index (CRI):
95
95
95
95
95
Fixture Height:
2.7 in. (69mm)
2.7 in. (69mm)
2.7 in. (69mm)
2.7 in. (69mm)
2.7 in. (69mm)
Fixture Width:
5.1 in. (129mm)
5.1 in. (129mm)
5.1 in. (129mm)
5.1 in. (129mm)
5.1 in. (129mm)
UPC:
767706192438
767706192438
767706192438
767706192438
767706192438
