NICOR 17003AR 6 in. Remodel Airtight Housing
Alternative Views:
Our Price:
$
18.00
Product Code:
17003AR
Qty:
Description
Technical Specs
Videos & Manuals

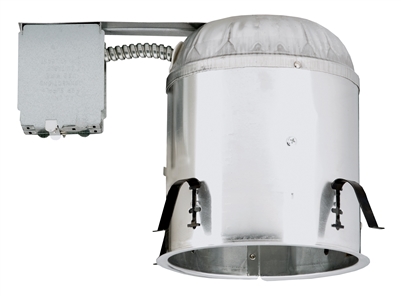

NICOR 17003AR 6 in. Remodel Airtight Housing
For a Formal Estimate Call: 888-560-0759 or E-Mail:
[email protected]
The NICOR 17003AR is great for remodel projects in both residential and commercial applications. It is approved for direct contact with insulation and has an adjustable socket bracket that allows for proper and consistent lamp positioning.
Our Housings Come with a 1-Year Warranty!
Housing:
Aluminum construction provides greater heat dissipation.
Washington State Energy Code approved to meet restricted airflow requirements.
Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas.
Integral thermal protector guards against improper lamping an misuse of insulation materials.
Adjustable socket bracket assures proper and consistent lamp positioning.
7 1/2" height allows use in 2" x 8" joist construction.
Plaster Frame:
Housing is secured to plaster frame with screws and can be removed for access to junction box.
Housing adjusts from 1/2" to 1 1/2" to accommodate ceiling thickness.
Junction Box:
Listed for through branch circuit wiring and includes several 3/4" knockouts.
Supplied with three push-in wire connectors.
Listings:
UL Listed for direct contact with insulation
UL damp location
UL feed-through
CUL
Downloads:
Spec Sheet
Warranty Information
Features
Type:
Remodel
Lamp / Base Type:
Medium / E26
Airtight:
Yes
IC Rated:
Yes
Shallow
No
Slope:
No
Bracket:
Adjustable
Voltage:
Line
Length (in.):
11.25"
Width (in.):
7.50"
Depth (in.):
6.88"
Weight (lbs):
2.10 lbs.
