NICOR 17014A-LED-ID 6" Airtight Shallow Housing
Alternative Views:
Our Price:
$
18.99
Product Code:
17014A-LED-ID
Qty:
Description
Technical Specs
Videos & Manuals

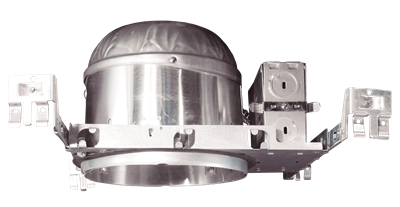

NICOR 17014A-LED-ID 6" Airtight New Construction Housing
The NICOR 17014A-LED-ID is the direct replacement for the NICOR 17014A-LED
For a Formal Estimate Call: 888-560-0759 or E-Mail:
[email protected]
The NICOR 17014A-LED-ID is suitable for new construction projects in both residential and commercial applications. It is IC rated and damp location listed and is certified for direct contact with insulation. The ideal connections allow for simple, snap-in connection with NICOR D-Series LED downlights
.
Our Housings Come with a 1-Year Warranty!
Housing:
Aluminum construction provides greater heat dissipation
Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas
Washington State Energy Code approved to meet restricted airflow requirements
Integral thermal protector guards against improper lamping and misuse of insulation materials
Adjustable socket bracket assures proper and consist lamp positioning
5 1/2” height allows use in 2” x 6” joist construction
Plaster Frame:
Housing is secured to plaster frame with screws and can be removed for access to junction box
Housing adjusts from 1/2” to 1 1/2” to accommodate ceiling thickness
Junction Box:
Listed for through branch circuit wiring and includes several 3/4” knockouts
Four pryouts with integral strain relief simplify Romex installation
Supplied with three push-in wire connectors
Hanger Bars:
Heavy-gauge NICOR captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24” joist span, then locked in place with set screws
Unique hanger bar lip design helps align can to joist
Four double-headed captive nails provide for ease of installation
Bars can be repositioned 90° on plaster frame without tools
Bars fit onto T-bar spine for quick alignment and can be permanently secured
Score lines allow bars to be shortened without tools to accommodate a 12” joist span
Downloads:
Spec-Sheet
