NICOR NUC-5 Series 40-inch Nickel Selectable LED Under Cabinet Light
Alternative Views:
Our Price:
$
125.00
Product Code:
NUC540SNK
Qty:
Description
Technical Specs

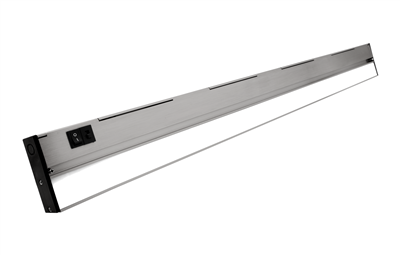

NICOR NUC-5 Series 40-inch Nickel Selectable LED Under Cabinet Light
For a Formal Estimate Call: 888-560-0759 or E-Mail:
[email protected]
The NICOR NUC540S 40-Inch Selectable LED Undercabinet in Nickel is designed for easy hardwire installation that can be done through various knockout ports. You can control the undercabinet light from a wall switch or dimmer for full range dimming. Part of NICOR's Select Series, the NUC540S allows you to switch your color temperature between 2700K, 3000K, and 4000K using the switch next to the on/off switch. The 1-inch low profile design keeps the fixture out of sight to provide pure ambient light without heat or harmful UV light.
Our LED Products Come with an Outstanding 5-Year Warranty!
Construction
Extruded aluminum housing for durability and ample heatsinking
Low 1-inch profile keeps the fixture unobtrusive and out of view
No UV or forward-projected heat
UL Listed for damp locations
Optical System
Uniform lighting with specially designed glass diffuser to prevent pixelation and “hot spots” on counter tops
Electrical
Dimmable with most TRIAC dimmers
Custom low-profile driver engineered for optimal dimming across all sizes
Operating temperature rating of 0°F to 120°F (-18°C – 49°C)
120VAC Input
LED
CCT Selectable at 2700K, 3000K, or 4000K
Greater than 92 CRI with R9 greater than 50
L70 rated for greater than >50,000 hours
TM-21 Projected L70(6k) life >100,000 hours
LM-79, LM-80 testing performed in accordance with IESNA standards
Finish
Available in: Black, Nickel, White, and Oil-Rubbed Bronze
Installation
Easy surface mount installation
Pre-installed captive screws allow for quick mounting
Positive latch door for easy access and installation
Versatile knockout selection allows for multidirectional wiring
Warranty
5-year limited system warranty standard
Features
Luminaire:
2700K
3000K
4000K
LED Lifetime (Hrs):
50,000
50,000
50,000
Input Voltage (V):
120V
120V
120V
Input Watts:
15.52W
15.52W
15.52W
Lumens (Lm):
1037
1159
1213
System Efficacy (Lm/W):
66.8
74.7
78.1
Color Rendering Index (CRI):
93
93
93
Fixture Length:
40 in. (1016mm)
40 in. (1016mm)
40 in. (1016mm)
Fixture Width:
3.5 in. (89mm)
3.5 in. (89mm)
3.5in. (89mm)
